Quantum TRAILED Sprayers

trailed_sprayer_main
line_h

Standard Features

Chassis
The chassis are super strong and built to last the harsh African Conditions






Suspension
The suspension systems are designed with stability in mind. Ground clearance is fully adjustable along with the track width, which is adjustable from 1.5m – 2.3m. The tandem wheels are fitted with 15 inch rims as standard, and with the optional Trelleborg tyres, results in a system that is completely no-tilt ready.



Boom
Like the chassis our booms are built to withstand the harsh African conditions, the unique trapezium action is a standard feature on 12m + booms resulting in a longer boom life and better overall stability.

Shock Tension Spring
The shock and tension spring combination is a unique stability feature which allows for high speed spraying with no damage to the boom.



2_point_breakaway

2 Point Breakaway – The unfolding action of the boom is available in manual or hydraulic to
suit your specification, is height adjustable, and has a 2 point breakaway action for unseen obstacles.

Electric Hydraulic Control Box SERIE 4667

  • Control box for operating hydraulic booms thanks to double action hydraulic levels
  • Levelling, height, locking and 4 or 6 booms motion drives
  • Right and left led for row marker
  • Power supply 12 Vdc

hydraulic_control

electrovalve

Modular electrovalves unit for hydraulic booms

  • Units from 3 to 9 functions
  • Pilot valve for discharge
  • Max. pressure valve
  • Double solenoid electrovalves
  • Possibility of manual operating
  • Threaded valves outlets, G1/4" M
  • Threaded inlet and outlet of unit, G1/2"M
  • Electrovalve absorption 27W
  • Power supply 12 Vdc
  • Protection against corrosives
  • Possibility of mounting integrated locking valves

Stop valve kit

All units are fitted with a “no return” valve to avoid pressure failure inside the hydraulic cylinders.

  • Flanges for Arag hydraulic valves
  • Easy and fast assembly
  • Supplied with fixing screws
  • Protected against corrosives

Accessories:

  • H - Power supply socket & plug
  • L - Two boxes feeding cable
  • M - Two boxes support
  • N - Hydraulic control box cable
  • O – Hydraulic control box extension cable
  • P – Foam marker
  • Q – Hydraulic valves

stopvalve_kit hydraulic_accessories

nozzle_tripple_holdernozzles_non_drip

Nozzles

Various nozzles are available. We offer a customised nozzle configuration as standard to suit your applications.
Our mounted sprayers come with shielded non-drip nozzles as standard.

Pump Unit

The trailed sprayers are fitted with a choice of PTO or ground driven pumps e.g.

AR 160 BP

Udor Zeta 85 1C

Imovilli D113

Jacto 150

Comet BP 60

ar160_bp

zeta_85_1c

imovilli_d113

jacto_150

comet_bp60

Available Sizes:

  • Boom: 10-33 meters
  • Tank: 2000 litres and 2500 litres
  • Pump: 50-250 litres/min

Accessories:

  • Bravo 300S or Bravo400 Controller
  • Mixing Tank
  • Foam marker
  • Trelleborg tyres

Optional Fitment – Spray controllers with GPS (Increase your productivity and profits via automated and precise chemical/water application)

<< Go back to Sprayers

Go to products >>

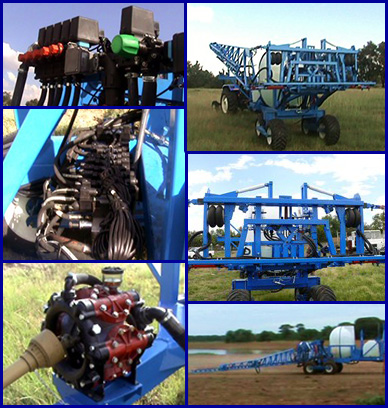

33m-trailed sprayer

33 METER TRAILED SPRAYER

New in our range are the 33 meter HD Trailed Sprayers.

  • Fitted with Treliborgs.
  • Full electrical hydraulic system.
  • BRAVO 300S 5 valve hydraulic controller.
  • 2500 Lt tank.
  • 600Lt for fresh water (optional)
  • Can also be fitted with triple DCV's with 66 nozzles per application.
  • Fitted with a UDOR RO 320TS 2C pump (320 Lt/min)
  • Air cushions for stability.
  • On board hydraulics also available.

<< Go back to Sprayers

Go to products >>

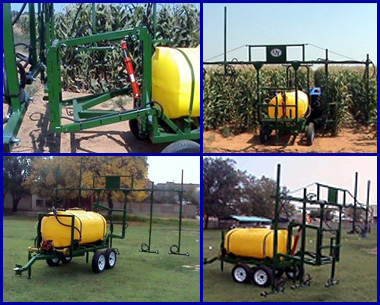

ROUNDUP SPRAYER

This Small tractor Sprayer is ideal for the application of Roundup as well as liquid fertiliser.

  • Comes with a 600 or 1000 lt tank
  • Adjustable for 5ft and 7ft rows.
  • Fully adjustable booms.
  • Spacing between 3ft and 7ft.
  • Also available in the standard booms (6, 10 and 12 meters.)
  • 12 meter boom available with trapezium.
  • Fitted with a UDOR Zeta 70 1C PTO driven pump.
  • Available in single or tandem axle.
roundup

<< Go back to Sprayers

Go to products >>
