Quantum mounted sprayers is compact, easy to use, manually operated machine with a
narrow profile polyethylene tank.

RUNNER
The application of chemicals is controlled by means of our unique contact ground driven system, which results in 2 distinct advantages:

• Our system starts and stop automatically with the movement of your planter, resulting in an efficient spraying process.
• The fact that our ground driven system is driven by the runner means that it is John Deere approved.

CADDY BRACKET
Naturally our Caddy Brackets are incredibly strong and robust.  They are adjustable, easy to clean and rust proof, allowing you years of hassle free spraying.

TANKS
Naturally Quantum Tanks are incredibly strong and robust.  They are adjustable, easy to clean and rust proof, allowing you years of hassle free spraying.

For more information regarding our tanks click here

NOZZLES
Non drip nozzle holder are standard fitment and keep the system pressure constant, resulting in a perfect release of chemicals via our contact ground driven system.

For more about our Nozzle range click here

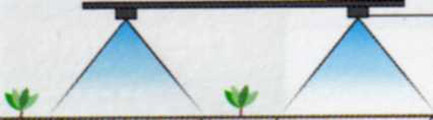

Band Spraying(Even spray)

Broadcast pattern(Flat spray)

PUMP UNIT
The system is fitted with a Zimrah Z2 positive displacement piston pump, which is ground driven by the runner, resulting in even and accurate product application. Any other pump can be fitted on request e. g. diaphragm pump.

These pumps have a high capacity resulting in better agitation and less wear.  Calibration is done on the pump and remains constant.
                                                                            CLICK HERE TO VIEW PUMP ASSEMBLY

QT SQUEEZE PUMPS

6-Row QT Squeeze pump

10-Row QT Squeeze pump

• 22mm Stainless steel Hex shaft (Can be fitted with standard John Deere sprockets)
• Laser cut precision
• Roller bearings
• 2" Nylon manifold
• Stainless steel rollers
• Three setting points for ultimate flow regulation.
• Fitted with 1/2" or 5/8" Demco hose

• 22mm Stainless steel Hex shaft (Can be fitted with standard John Deere sprockets)
• Lazercut prescision
• Roller bearings
• 2" Nylon manifold
• Stainless steel rollers
• Three setting points for ultimate flow regulation.
• Fitted with 1/2" or 5/8" Demco hose

Also available in a 4-Row.
All of the QT Squeeze pump components are locally available.

Available Sizes:

• 250 Litre Tank
• 600 Litre Tank
• 1000 Litre Tank
• 2000 Litre Tank

Option configuration:

Available in broadcast or band spraying
